Deluxe Modular Fence Bottom or Mid Rail

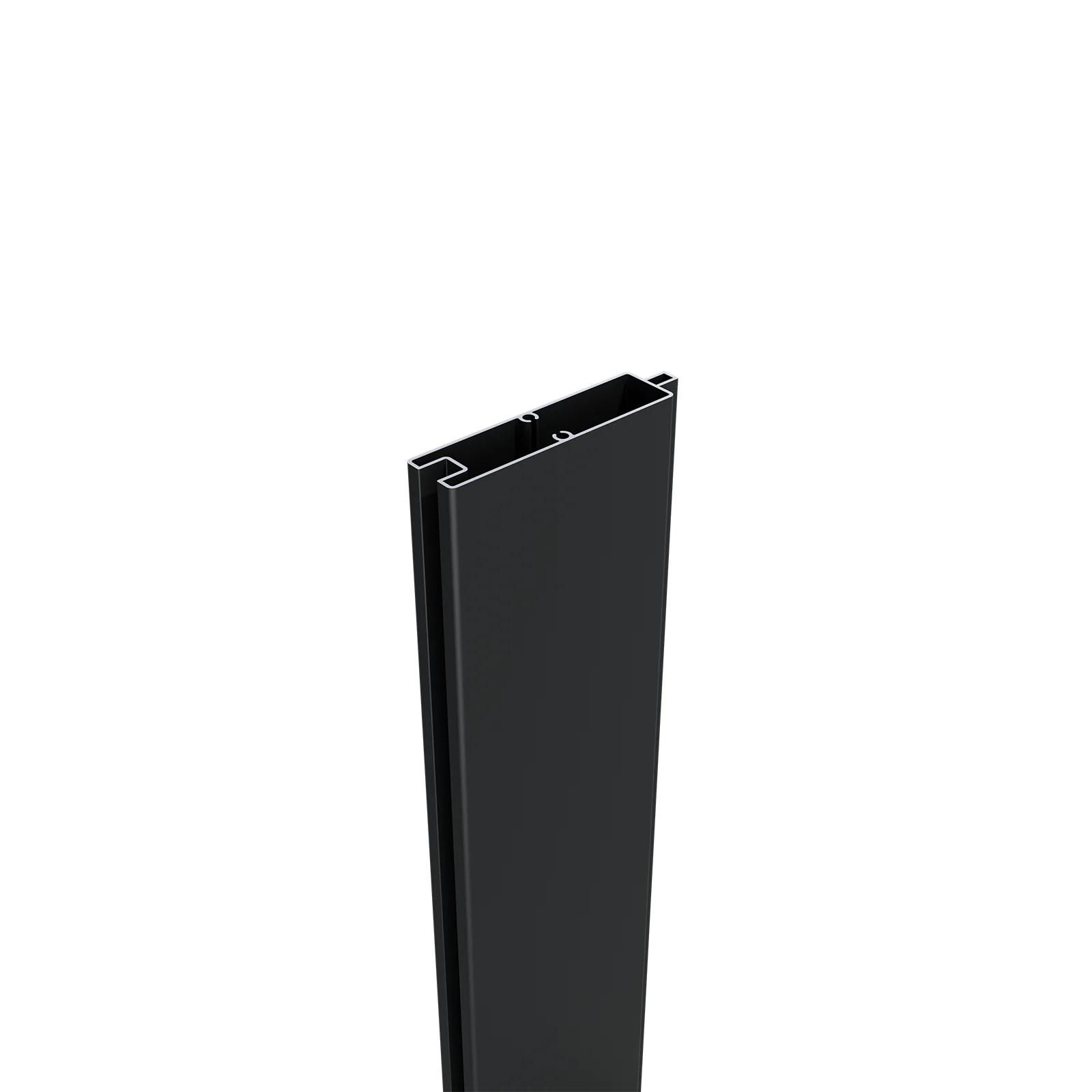

The Greenwood Fence (GWF®) Deluxe Bottom or Mid Rail is a matte black powder-coated aluminum extrusion engineered as the foundation rail of every panel within the GWF® Modular Composite Fence and Gate System, and as the dividing rail between stacked infill sections in taller or mixed-material designs. Manufactured from 6063-T5 architectural-grade aluminum with an AAMA powder coating, the Deluxe profile presents a 3.15 inch (80mm) architectural face, measured exclusive of the integrated locator tongue, over a 6-foot standard length. The locator tongue registers panel positioning from below, while the interior channel with symmetrical infill-retention features runs the full length of the profile to seat composite, vinyl, or aluminum infill boards. Function is identical to the standard 1-3/16 inch bottom or mid rail and the two are fully interchangeable; the choice is purely visual. Paired with the GWF® Deluxe Top Rail, it completes a bold, matched frame around the panel, compatible with both the 2-3/4 inch Standard Post and the 4-inch Commercial (HP) Post, across every composite and vinyl infill colorway. Sold as a single 6-foot length; the matching Deluxe Top Rail is available separately. Engineered in Addison, Illinois.
