Insertion Bracket, Stainless Steel, 4-Pack

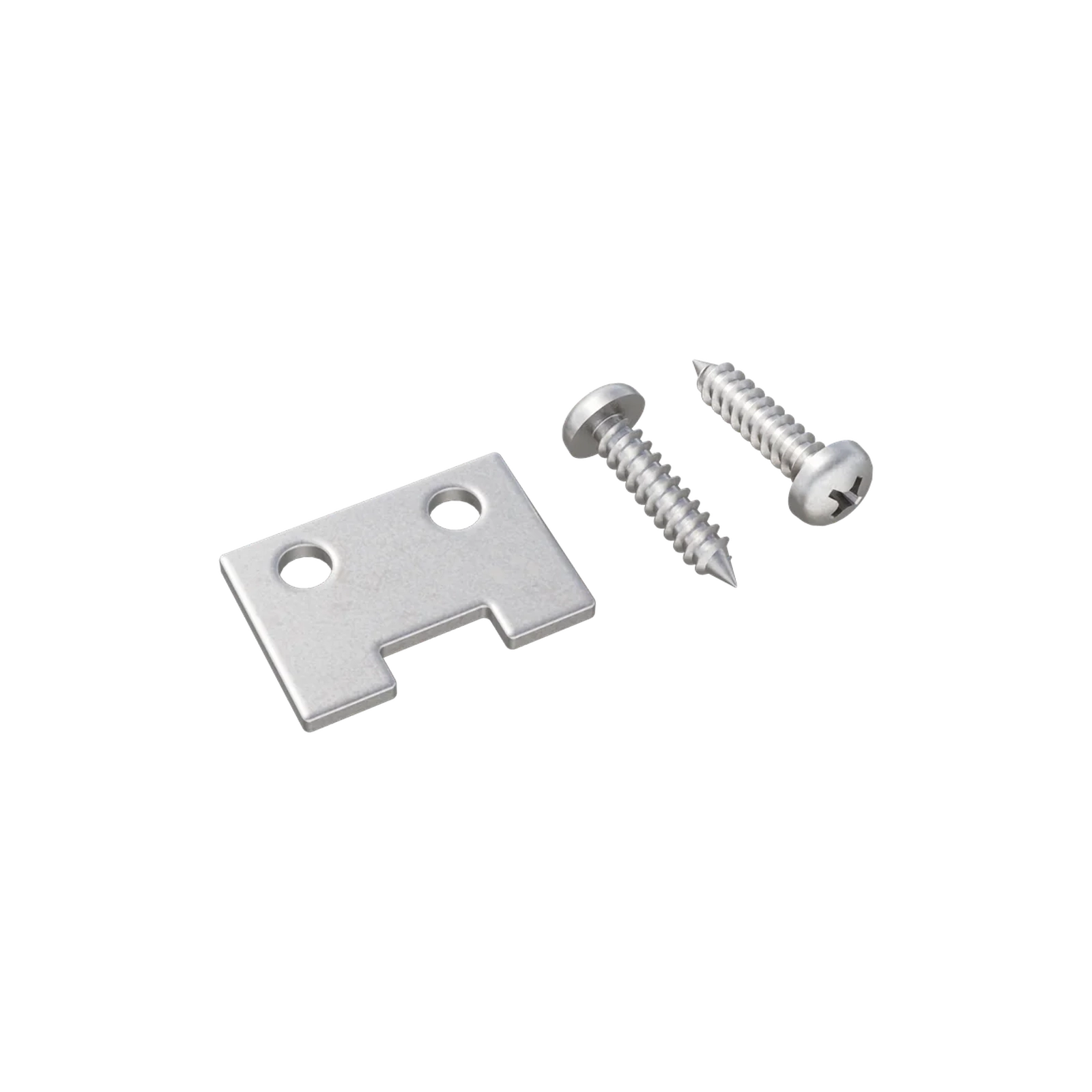

The Greenwood Fence (GWF®) Insertion Bracket is a stainless steel connection plate engineered to link every rail to the post channel within the Modular Composite Fence and Gate System. Sold as a 4-pack with 8 stainless steel screws, one pack completes a single panel assembly (two brackets per rail, top and bottom). Each bracket is screwed to the rail end with approximately 1/8 inch of intentional play, then slides into the post’s inner side channel to establish the panel-to-post connection. The 1/8 inch clearance is a deliberate engineering feature: it allows the bracket to shift geometrically within its own mounting holes to compensate for posts that are not perfectly plumb, pulling the effective post spacing back into the correct 74-inch on-center dimension so that 72-inch composite, vinyl, or aluminum infill boards drop into position with the right clearance every time. This self-aligning behavior is what makes real-world installations forgive small deviations without compromising panel geometry. Universal fit across both the 2-3/4 inch Standard Post and the 4-inch Commercial (HP) Post. Engineered in Addison, Illinois.
